4MP Fixed Dome Network Camera
+ KDV
53
4MP Fixed Dome Network Camera

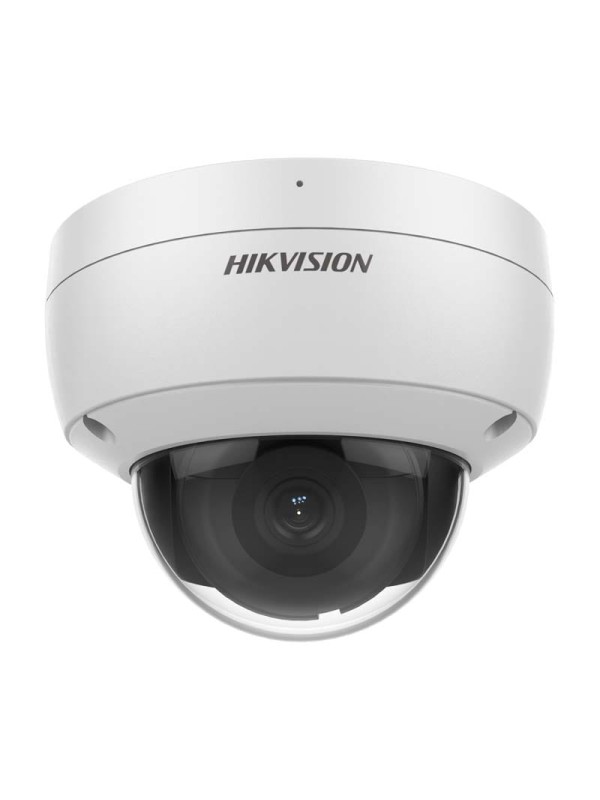

Hikvision 4MP Fixed Dome Network Camera
- 1/3" Progressive Scan CMOS
- 2560×1440 resolution
- 2.8/4mm optional fixed lens
- 30m night vision distance
- H.265+ video compression format
- IP67, IK10 protection standard
- BLC, 3D DNR, 120dB WDR, ROI
- 12V DC power supply
- Micro SD card up to 256GB
DS-2CD1143G0-IUF| Camera Features | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Lens | 2.8mm fixed lens |
| Max. Resolution | 2560×1440 |
| Axis Range | Pan: 0° to 355°, tilt: 0° to 75° |
| Frame Rate | 50Hz: 20fps (2560×1440) 25fps (2304×1296, 1920×1080, 1280×720) / 60Hz: 20fps (2560×1440) 30fps (2304×1296, 1920×1080, 1280×720) |
| Shutter Speed | 1/3s to 1/100,000s |
| WDR | 120dB WDR |
| ROI | Supports |
| Stream Type | - |
| Video Compression Format | H.265+ |
| SD Card Support | Micro SD card up to 256GB |
| Other Functions | 3D DNR, BLC, AGC, Brightness, Sharpness Saturation, Contrast, White balance |
| Network | |
| Network Interface | 1 RJ45 10/100M self-adaptive Ethernet port |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP™,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour,IPv4,UDP,SSL/TLS |
| Interface Unit | |
| Audio In / Out | - |
| Alarm Input/ Output | - |
| General Features | |
| Power Supply | 12V DC, PoE(802.3af, class3) |
| IR Distance | 30m |
| Protection Standard | IP67, IK10 |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Dimension | 120 × 92.2mm (4.72×3.63") |
| Weight | 440g (1.0lb.) |
